Products

Bandimex HD-Adapter

to apply Bandimex Preformed Clamps
For use with the Bandimex Tool W 001 fixed in a vise as well as for portable applications.

Cat.No.		weight
V 050	Bandimex HD-Adapter	0,7 kg

Bandimex Air Tool

to apply Bandimex Preformed Clamps
Semi-automatic airtool. The cutting process is carried out manually.
All replacement parts for the Bandimex Air Tool V 440 are separately available.

Cat.No.		weight
V 440	Bandimex Air Tool	28,0 kg

Bandimex vollautomatisches Druckluftwerkzeug

Bandimex Automatic Air Tool

to apply Bandimex Preformed Clamps
Fully automatic airtool. The cutting process is carried out automatically by a separate cylinder. Particularly suitable for big diameter hoses, heavy workpieces and serial assembly.
All replacement parts for the Bandimex Airtool V 800 are separately available.

Cat.No.		weight
V 800	Bandimex Automatic Air Tool	38,0 kg

Bandimex Mounting Brackets with straight legs – SS-CrNi

View products

Bandimex Mounting Brackets with straight legs – SS-CrNi

50 pieces/box
SS-CrNi
with straight legs
with 1 or 2 bolts

Cat.No.		weight
H 001	1 bolt (M8 x 16) with washer	3,3 kg
H 008	2 bolts (M8 x 16) with washers	4,5 kg

Bandimex Mounting Brackets with flared legs – SS-CrNi

View products

Bandimex Mounting Brackets with flared legs – SS-CrNi

50 pieces/box
SS-CrNi
with flared legs
with 1 or 2 bolts

Cat.No.		weight
H 021	1 bolt (M8 x 16) with washer	3,3 kg
H 028	2 bolts (M8 x 16) with washers	4,5 kg

Bandimex Mounting Brackets with 9 mm wide slotted holes – SS-CrNi

View products

Bandimex Mounting Brackets with 9 mm wide slotted holes – SS-CrNi

50 pieces/box
SS-CrNi
with 9 mm wide slotted holes

Cat.No.			weight
H 026	90 mm long	slotted holes 50 mm – 80 mm	2,3 kg
H 025	140 mm long	slotted holes 60 mm – 120 mm	4,3 kg
H 027	200 mm long	slotted holes 115 mm – 175 mm	6,3 kg

Bandimex Y-Bracket – SS-CrNi

View products

Bandimex Y-Bracket – SS-CrNi

50 pieces/box
SS-CrNi

Cat.No.			weight
H 096	Y – Bracket	60 mm long	3,7 kg
H 097	Y – Bracket	100 mm long	5,8 kg

Bandimex Dimple–Bracket with flared legs for use with Alu-Angles – SS-CrNi

Bandimex Dimple–Bracket with flared legs for use with Alu-Angles – SS-CrNi

50 pieces/box
SS-CrNi
with dimple hole, 1 bolt and nut
for use with Alu-Angles
weight: 3,3 kg

Cat.No.		weight
H 435	with dimple hole, 1 bolt and nut	3,3 kg

Bandimex Alu–Angles

View products

Bandimex Alu–Angles

slotted holes

Bandimex Alu–Angles are used with the Bandimex Dimple–Bracket H 435.

Cat.No.		weight
H 100	slotted holes 60 mm - 90 mm	0,1 kg
H 380	slotted holes 335 mm - 365 mm	0,2 kg
H 530	slotted holes 480 mm - 510 mm	0,3 kg
H 730	slotted holes 685 mm - 715 mm	0,4 kg
H 930	slotted holes 885 mm - 915 mm	0,5 kg

Bandimex Alu-Profile-Bracket

Bandimex Alu-Profile-Bracket

for signs and boards with alu-profile-frame
weight: 0,1 kg

Cat.No.		weight
H 002	Alu–Profile–Bracket	0,1 kg

Bandimex Warehouse

Bandimex Warehouse

colour: blue
weight: 4,0 kg

Cat.No.		weight
W 274	Bandimex Warehouse	4,0 kg

Schneckenschraubband und Schraubgehäuse – 7 mm

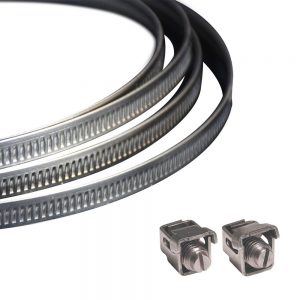

Worm Drive Band and Housing – band width: 7 mm

View products

Worm Drive Band and Housing – band width: 7 mm

SS-CrNi
band width: 7 mm

Cat.No. SS-CrNi		weight
A 207	Band, 25 m/roll	0,8 kg
A 207/2	Band, 2 m/roll	0,1 kg
A 217	Housing, fast locking, 100 pieces	0,9 kg

On request we supply endless worm drive bands of any required length, with or without housing securely mounted on the band.

Schneckenschraubband und Schraubgehäuse – 11 mm

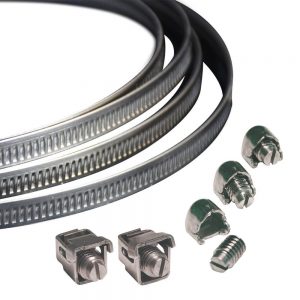

Worm Drive Band and Housing – band width: 11 mm

View products

Worm Drive Band and Housing – band width: 11 mm

SS-CrNi or galvanized
band width: 11 mm

Cat.No. SS-CrNi	Cat.No. galvanized		weight
A 230	A 330	Band, 30 m/roll	2,0 kg
A 230/3	A 330/3	Band, 3 m/roll	0,2 kg
A 260	A 360	Housing, fast locking, 100 pieces	2,1 kg
A 270	A 370	Housing and screw, 100 pieces	1,3 kg

On request we supply endless worm drive bands of any required length, with or without housing securely mounted on the band.

Schneckenschraubband und Schraubgehäuse – 14 mm

Worm Drive Band and Housing – band width: 14 mm

View products

Worm Drive Band and Housing – band width: 14 mm

SS-CrNi
band width: 14 mm

Cat.No. SS-CrNi		weight
A 213	Band, 30 m/roll	1,8 kg
A 213/5	Band, 5 m/roll	0,3 kg
A 210	Housing, fast locking, 10 pieces	0,2 kg
A 211	Housing, fast locking, 50 pieces	0,9 kg

On request we supply endless worm drive bands of any required length, with or without housing securely mounted on the band.

Bandimex Worm Drive Seal – SS-CrNi, for band width: 9,5 mm – 3⁄8″

Bandimex Worm Drive Seal – SS-CrNi, for band width: 9,5 mm – ³⁄₈″

10 pieces/box
SS-CrNi
for use with 9,5 mm – ³⁄₈″ Bandimex Band or Bandimex L-Band
weight: 0.3 kg

Cat.No. SS-CrNi		weight
A 220	Bandimex Worm Drive Seal	0,3 kg

Worm Drive Clamps – SS-CrNi

View products

Worm Drive Clamps – SS-CrNi

Heavy Duty construction.

SS-CrNi
band width: 14 mm
band thickness: 0,6 mm

Cat.No.	range mm	range inch	weight per 10 pieces
A 008	12 - 22	⁷⁄₁₆″ - ⁷⁄₈″	0,2 kg
A 010	16 - 27	⁵⁄₈″ - 1 ¹⁄₁₆″	0,2 kg
A 012	20 - 32	³⁄₄″ - 1 ¹⁄₄″	0,2 kg
A 020	25 - 40	1″ - 1 ¹⁄₂″	0,3 kg
A 024	30 - 45	1 ³⁄₁₆″ - 1 ³⁄₄″	0,3 kg
A 028	35 - 50	1 ³⁄₈″ - 2″	0,3 kg
A 032	40 - 60	1 ¹⁄₂″ - 2 ³⁄₈″	0,4 kg
A 036	50 - 70	2″ - 2 ³⁄₄″	0,4 kg
A 044	60 - 80	2 ³⁄₈″ - 3 ¹⁄₄″	0,4 kg
A 052	70 - 90	2 ³⁄₄″ - 3 ¹⁄₂″	0,4 kg
A 056	80 - 100	3 ¹⁄₄″ - 4″	0,4 kg
A 064	90 - 110	3 ¹⁄₂″ - 4 ³⁄₈″	0,5 kg
A 072	100 - 120	4″ - 4 ³⁄₄″	0,5 kg
A 080	110 - 130	4 ³⁄₈″ - 5 ¹⁄₄″	0,5 kg
A 084	120 - 140	4 ³⁄₄″ - 5 ¹⁄₂″	0,5 kg
A 088	130 - 150	5 ¹⁄₄″ - 6″	0,5 kg
A 094	140 - 160	5 ¹⁄₂″ - 6 ³⁄₈″	0,6 kg
A 104	150 - 170	6″ - 6 ³⁄₄″	0,6 kg
A 110	160 - 180	6 ³⁄₈″ - 7 ¹⁄₄″	0,6 kg
A 116	170 - 190	6 ³⁄₄″ - 7 ¹⁄₂″	0,6 kg
A 122	180 - 200	7 ¹⁄₄″ - 8″	0,7 kg
A 140	190 - 210	7 ¹⁄₂″ - 8 ³⁄₈″	0,7 kg
A 152	200 - 220	8″ - 8 ³⁄₄″	0,7 kg
A 158	210 - 230	8 ³⁄₈″ - 9 ¹⁄₄″	0,7 kg
A 164	220 - 240	8 ³⁄₄″ - 9 ¹⁄₂″	0,7 kg
A 172	230 - 250	9 ¹⁄₄″ - 10″	0,8 kg

Further dimensions are available on request.

Worm Drive Clamps are also available in light-duty constructions with band width 9 mm (starting with diameter 8 mm) and 12 mm (starting with diameter 16 mm).
Available in following material types:
W1: All parts galvanized
W2: Band and housing in SS 430, screw galvanized
W4: All parts SS-CrNi
W5: All parts SS-CrNiMo

Bandimex Hose Menders – Plated Steel

View products

Bandimex Hose Menders – Plated Steel

Plated Steel

Cat.No.	hose I.D.	total length	weight
K 106	6 mm – ¹⁄₄″	46 mm	0,1 kg
K 108	10 mm – ³⁄₈″	48 mm	0,1 kg
K 110	13 mm – ¹⁄₂″	60 mm	0,1 kg
K 112	16 mm – ⁵⁄₈″	60 mm	0,1 kg
K 114	20 mm – ³⁄₄″	60 mm	0,1 kg
K 116	25 mm – 1″	80 mm	0,1 kg
K 118	32 mm – 1 ¹⁄₄″	80 mm	0,2 kg
K 120	38 mm – 1 ¹⁄₂″	80 mm	0,2 kg

Bandimex Hose Nipples – Plated Steel

View products

Bandimex Hose Nipples – Plated Steel

12 pieces/box
Plated Steel

Cat.No.	thread	hose I.D.	weight
K 056	¹⁄₄″	6 mm – ¹⁄₄″	0,3 kg
K 060	¹⁄₄″	10 mm – ³⁄₈″	0,4 kg
K 062	³⁄₈″	10 mm – ³⁄₈″	0,5 kg
K 068	¹⁄₄″	13 mm – ¹⁄₂″	0,8 kg
K 070	³⁄₈″	13 mm – ¹⁄₂″	0,8 kg
K 072	¹⁄₂″	13 mm – ¹⁄₂″	1,2 kg
K 082	¹⁄₂″	20 mm – ³⁄₄″	1,2 kg
K 084	³⁄₄″	20 mm – ³⁄₄″	1,7 kg
K 090	1″	25 mm – 1″	2,0 kg
K 092	1″	32 mm – 1 ¹⁄₄″	2,3 kg
K 096	1 ¹⁄₂″	38 mm – 1 ¹⁄₂″	5,4 kg

Bandimex Geschmiedete Schlauchkupplungen

Bandimex Swaged Hose Coupling – Plated Steel

View products

Bandimex Swaged Hose Coupling – Plated Steel

Plated Steel

Cat.No.	hose I.D.	total length	weight
K 798	13 mm – ¹⁄₂″	93 mm	0,1 kg
K 800	20 mm – ³⁄₄″	93 mm	0,1 kg
K 802	25 mm – 1″	100 mm	0,2 kg
K 804	32 mm – 1 ¹⁄₄″	105 mm	0,2 kg
K 806	38 mm – 1 ¹⁄₂″	108 mm	0,3 kg
K 808	50 mm – 2″	134 mm	0,5 kg
K 812	63 mm – 2 ¹⁄₂″	146 mm	0,8 kg
K 814	75 mm – 3″	156 mm	1,0 kg
K 816	100 mm – 4″	203 mm	2,3 kg
K 818	125 mm – 5″	285 mm	4,0 kg
K 820	150 mm – 6″	350 mm	6,0 kg
