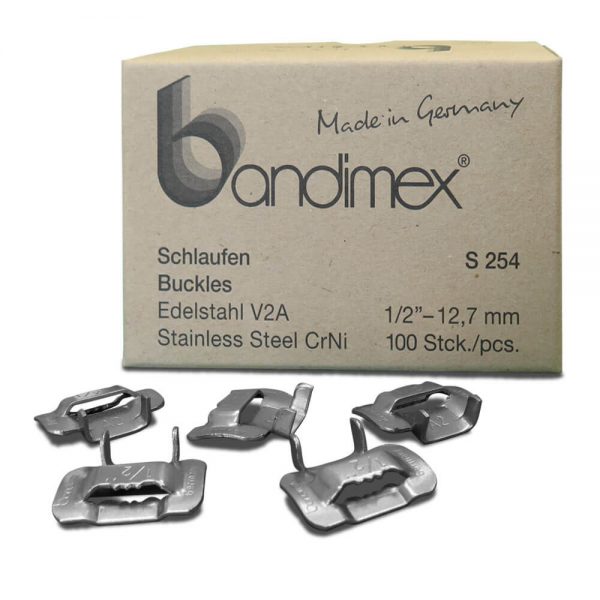

Bandimex Buckles – SS-CrNi, for band width: 12,7 mm – 12

100 pieces/box
for single or double wrapped Bandimex Band
SS-CrNi
for band width: 12,7 mm – 12
weight: 1,0 kg

Cat.No.: S 254

Description

material

SS-CrNi

for single or double wrapped Bandimex Band

packing unit

100 pieces

for band width

12,7 mm – 12

weight 1.0 kg

Instruction Band and Buckle

Montageanleitung Band und Schlaufen - Step 1Pull buckle on band, ears pointing towards end of band. Form clamp, holding band on band, then push buckle back over the doubled band, bending the end approx. 1″ under buckle.

Montageanleitung Band und Schlaufen - Step 2For heavy duty jobs double wrap band.

Montageanleitung Band und Schlaufen - Step 3Place band in tool, push down on gripper with thumb, tension clamp by turning handle. Maximum tension is reached when band stops moving through buckle.
When required tension has been applied, roll tool over buckle, at the same time reversing handle carefully approx. half turn to avoid breakage. There is no loss of tension, if handle is not reversed too much.

Montageanleitung Band und Schlaufen - Step 4Pull on cutter lever, band is cut off to correct length.

Montageanleitung Band und Schlaufen - Step 5Hold stub of band with thumb, hammer it flat over bridge of buckle, complete clamp by hammering ears over stub.

Montageanleitung Band und Schlaufen - Step 6

to apply with following products:
